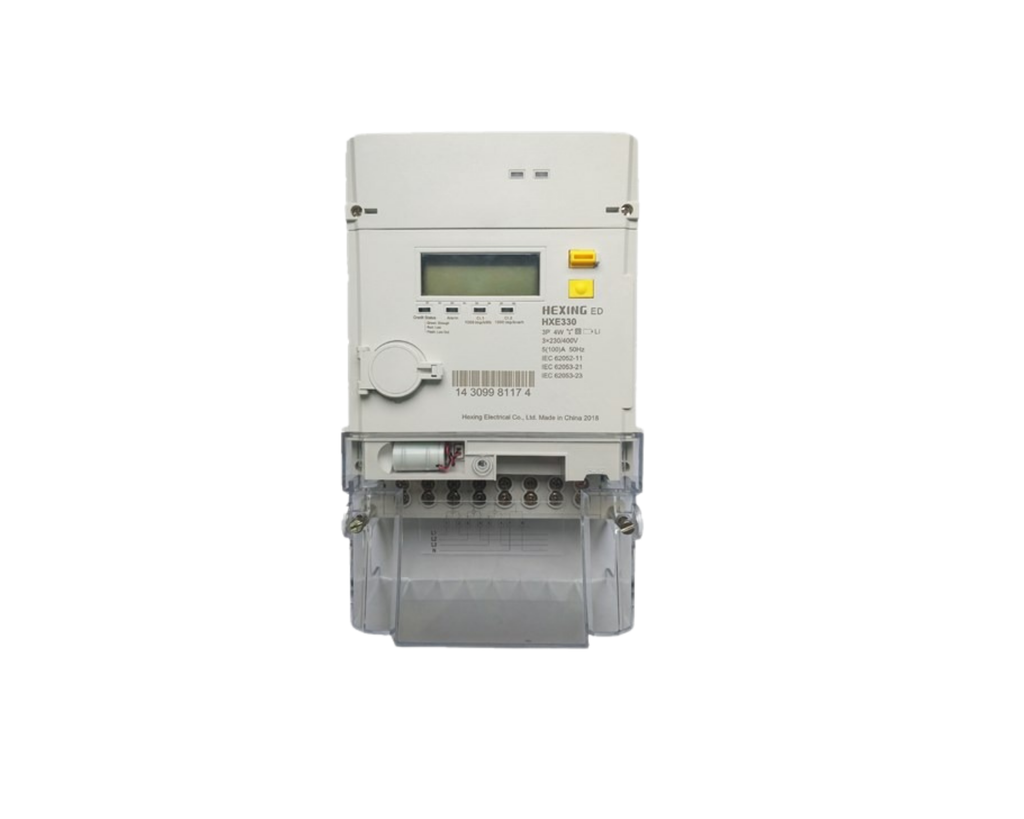

HXE330 Prepaid Electricity Meter + CIU

A secure prepaid metering solution featuring a split design with a separate Customer Interface Unit (CIU) keypad. Ideal for landlords and property managers who require controlled access to the meter while allowing convenient tenant-friendly top-up and credit management.

Three Phase Smart Prepayment Meter

HXE330 is a new generation of three phase smart prepayment meter which migrating STS/CTS with AMI functions. It provides local and remote credit charging. The meter is supported by the Volt Flow Tech Vending System.

Highlights

• Optional ultrasonic structure with high security and protection degree.
• STS/CTS standard protocol ensures an open and secure operating system
• Optical communication, open protocol: DLMS/COSEM (E mode)
• Internal switch relay for load demand control by configuration or remote communication
• Prepayment and post-payment mode switchable for users’ convenience
• A plug-and-play communication module (GPRS/PLC/RF)
• Built-in RS485 communication
• Optional Keypad on measurement unit

Ideal For:

• Rental Properties & Tenant Installations
• Backrooms, Flatlets & Granny Flats
• Apartments & Multi-Unit Residential Buildings
• Landlord & Property Management Applications
• Secure Metering Installations (Tamper-Resistant Setups)
• Properties Requiring Remote Keypad Access (CIU)

Dimensions: 257mm/277mm × 174mm × 90mm (Long terminal cover)

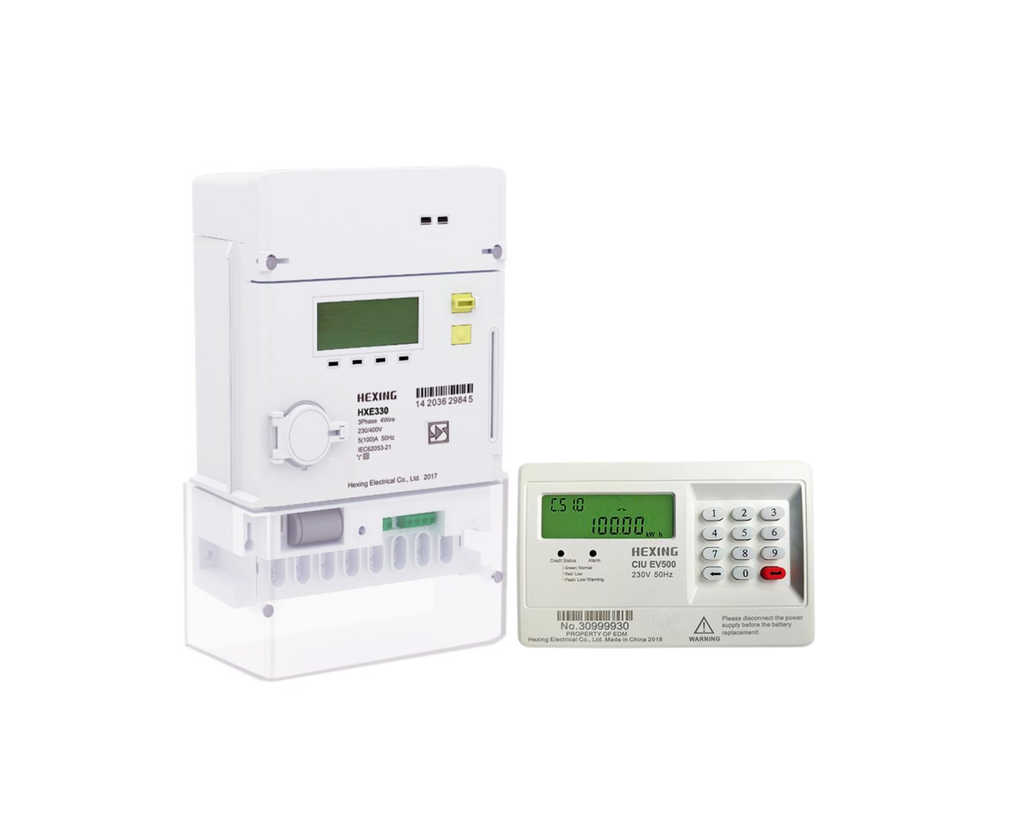

CIU EV500 (Customer Interface Unit)

CIU EV500 is a customer interface unit with keypad for credit charging. It communicates with metering unit by PLC or RF for energy consumption monitoring and credit charging.

Dimensions: 140mm × 88mm × 40.3mm
