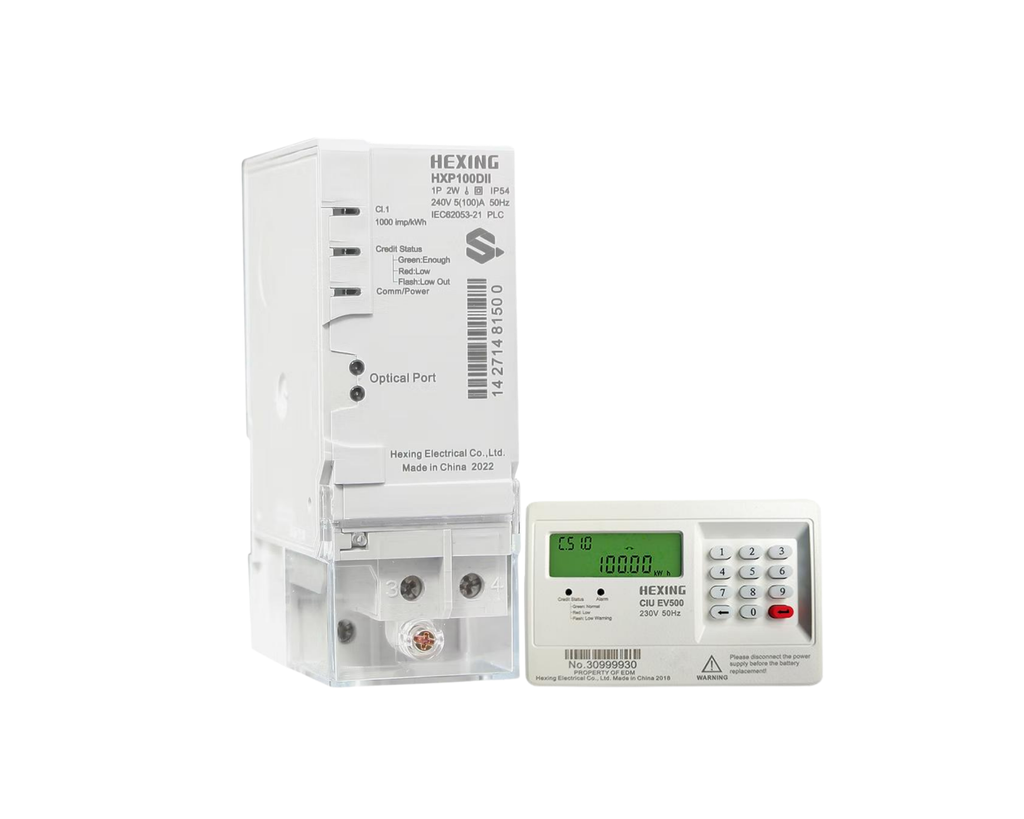

HXP100DII Prepaid Electricity Meter + CIU

A smart prepaid metering solution featuring a split design for enhanced security and flexible installation, ideal for landlords, homeowners, and multi-tenant residential applications.

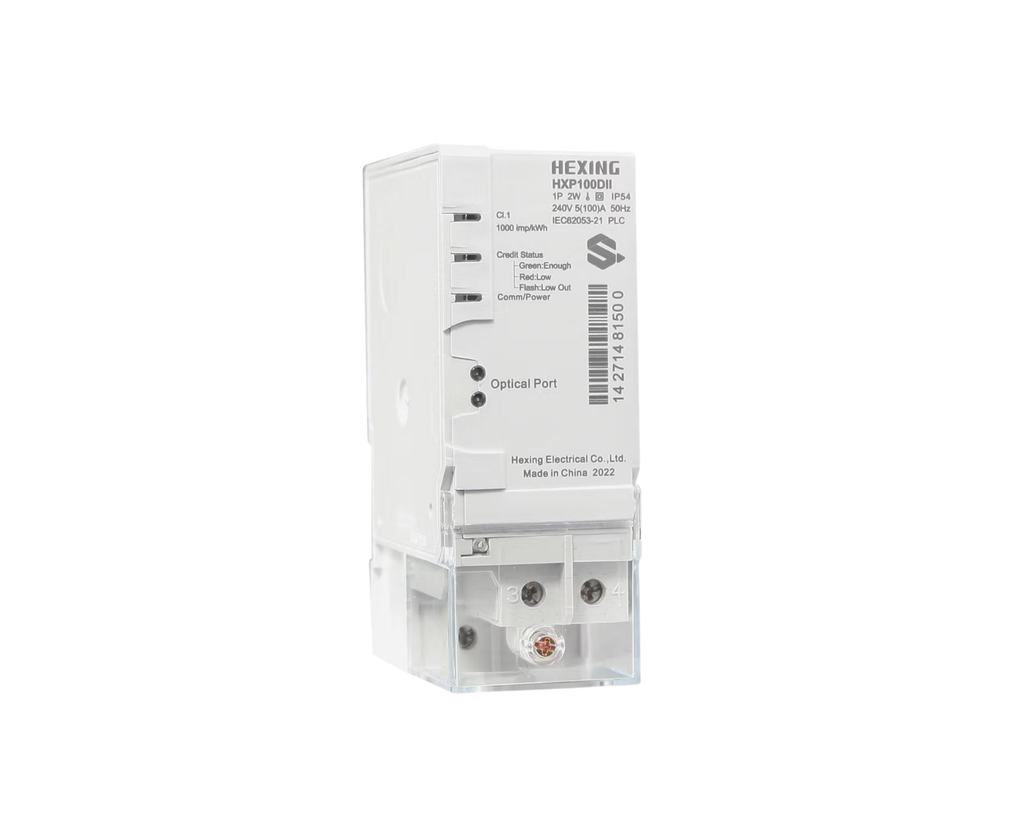

Single Phase DIN-Rail Split Prepayment Meter - G3-PLC

HXP100DII is a single phase two or three wire residential DIN-rail split prepayment meter, it complies with open standard (STS) and supported by the Volt Flow Tech Vending System. With G3-PLC communication, it can be used for energy consumption monitoring and credit charging.

Highlights

• STS standard protocol ensures an open and secure operating system
• Optical Communication, Open Protocol: DLMS/COSEM
• Split type design, With high tamper-proof performance
• Support AMI function by G3-PLC communication thru Data concentrator
• Single or Double relay control, double-circuit measurement
• LCD display function(optional)

Ideal For:

• Backrooms & Granny Flats
• Rental Units & Tenant Installations
• Apartments & Small Residential Units
• Secure Metering Applications
• Landlord & Property Management Solutions
• Properties Requiring Tamper-Resistant Installations


Dimensions: 135mm × 52mm × 89mm

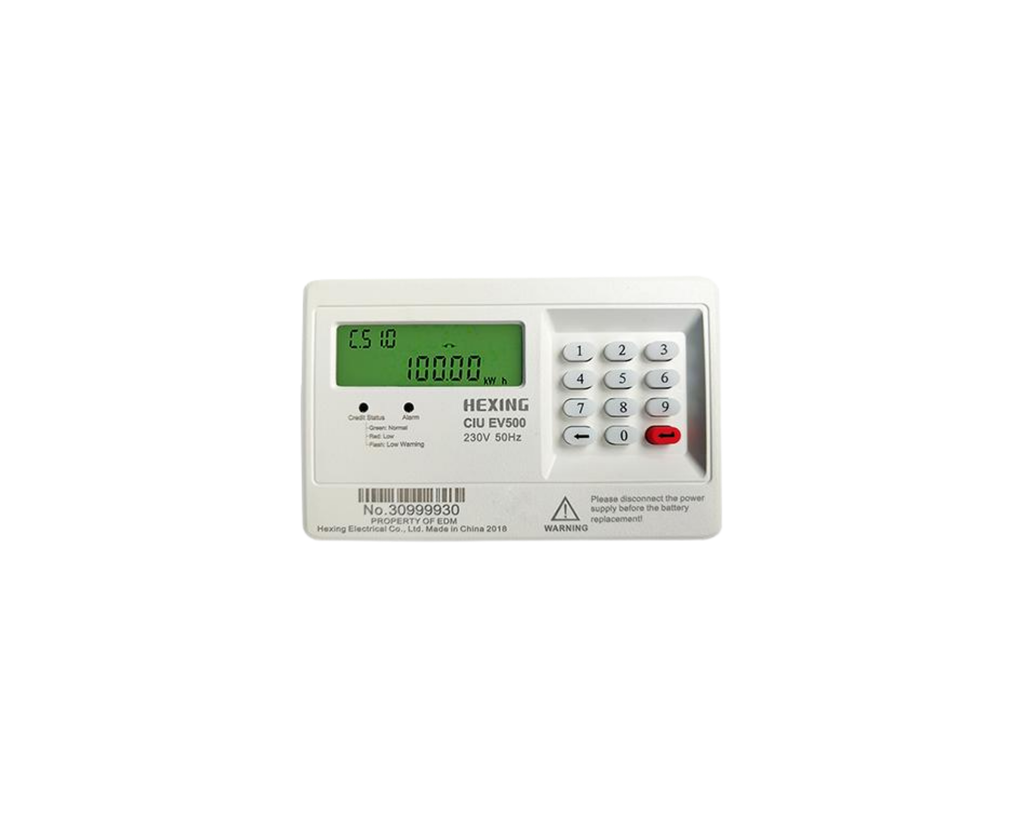

CIU EV500 (Customer Interface Unit)

CIU EV500 is a customer interface unit with keypad for credit charging. It communicates with metering unit by PLC or RF for energy consumption monitoring and credit charging.

Dimensions: 140mm × 88mm × 40.3mm
