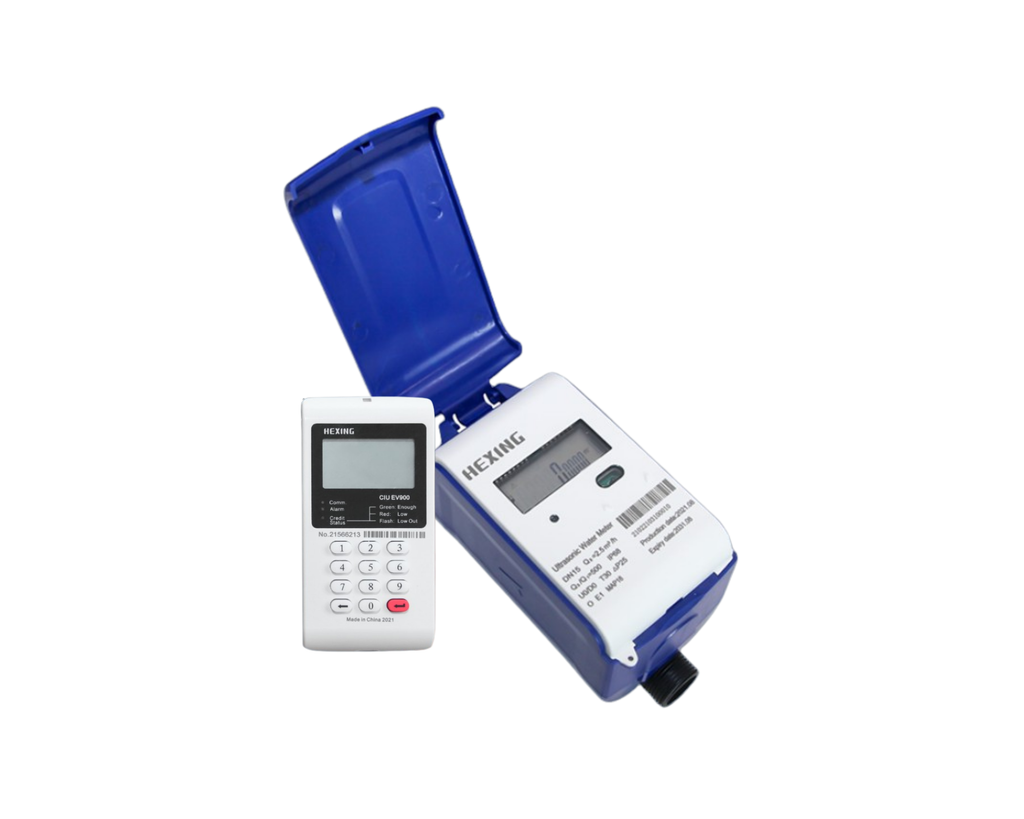

ZLINK Prepaid Water Meter + CIU

A smart prepaid water metering solution featuring advanced ultrasonic measurement technology and a split design with a separate Customer Interface Unit (CIU) keypad. Ideal for homeowners, landlords, developers, and property managers seeking accurate water monitoring, improved consumption control, and convenient prepaid water management.

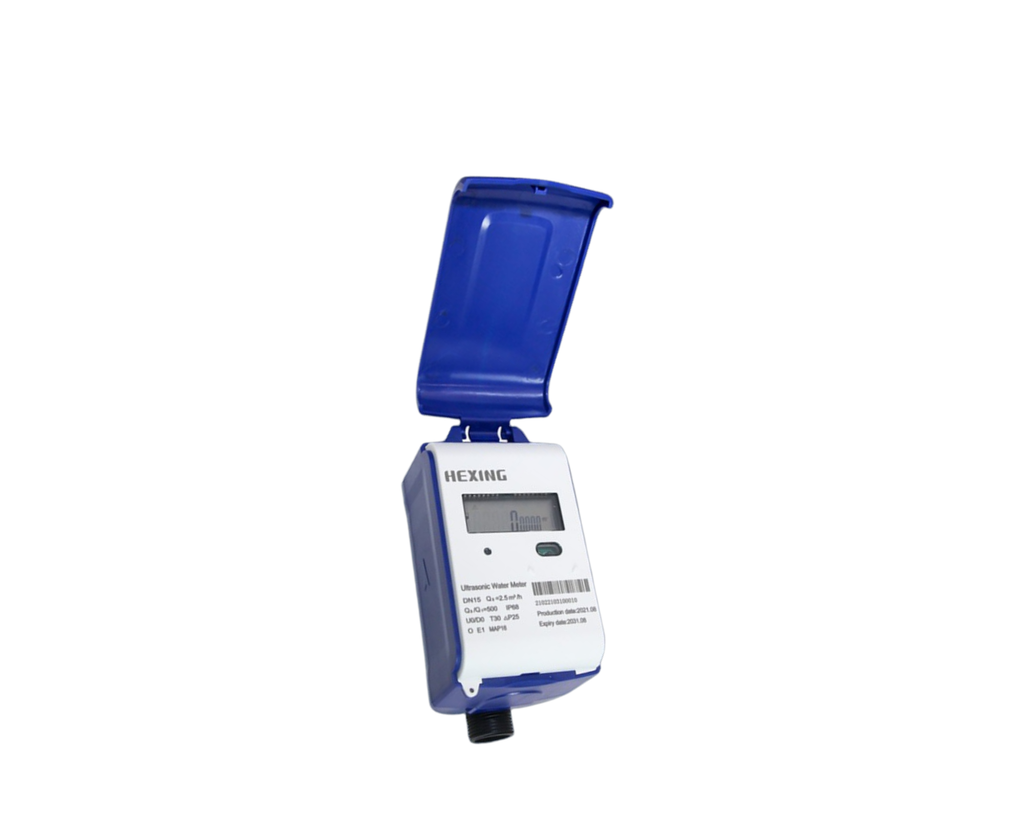

Z-Link Split 15mm Ultrasonic Prepaid Water Meter (with Separate CIU Keypad)

ZLINK prepaid residential water meter is a static meter operating on ultrasonic measurement technology with keypad

CIU, it is tailored to new developed vending with respect to International STS1 and STS2 standard; guaranteeing Token Algorithm security, helping utility eliminate bad debt, and
improving cash management. ZLINK performs accurate metering of water consumption with long-term stability. ZLINK is integrated with a wide range of IoT technologies to fit various application scenarios, which paves the way towards intelligent water utilities and smart city.

Highlights

• Applicable for DN15 = 15mm Residential use
• Bi-directional flow measurement to prevent water tamper
• Friendly big LCD displays various flow and alarms
• No wearing parts, excellent long-term stability and reliability
• Battery powered with lifetime of more than 8 years
• Installation in any position, no air measuring
• Actively defend against magnetic attacks by automatically closing the valve and displaying alarm
• Leakage detection and dry pipe detection

Ideal For:

• Residential Homes
• Rental Properties & Tenant Installations
• Apartments & Multi-Unit Developments
• Estates & Sectional Title Schemes
• Landlord & Property Management Applications
• Water Usage Control & Cost Recovery Projects

Dimensions: 165 x 80 x 106.5 mm

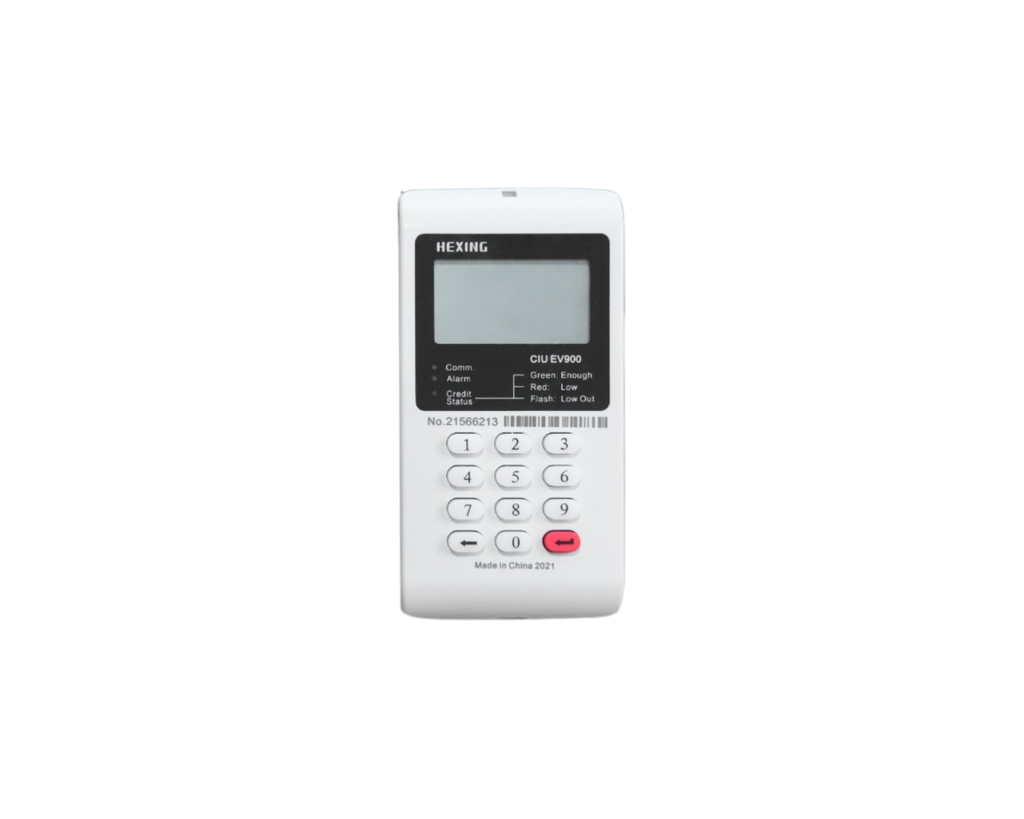

CIU EV900 (Customer Interface Unit)

CIU EV900 is a customer interface unit with keypad for credit charging. It communicates with metering unit by RF for water consumption monitoring and credit charging.

Dimensions: 130 x 67 x 25 mm
